Use the Logic Map to add Logic to your forms

If you’re someone who likes to visualize different paths in your typeforms, we’ve got great news for you! You can now use the Logic Map as an interactive tool to create and modify logic, without having to leave the visual comfort of your map.

The Logic Map is a tool that lets you visualize the structure of logic paths in your typeform. To access it, open up a typeform, and click the Logic tab.


If your typeform doesn’t contain any logic yet, you’ll see your questions in a single line, from left to right, following the order of questions in your typeform.


You can check out this article to see what the Logic Map of different scenarios might look like.

If you’re working directly in the Logic Map editor, you can access the same functionality as from the Branching and calculations feature. You can also find this, and all the other logic tools under the Logic tab.

Here’s how you can work on your logic from the Logic Map:

Click the + button and drag it to connect questions and create a new logic flow.


This will open up an editor panel on the left hand side. You can now create and modify paths without losing sight of the Logic Map.


In this example, we want to show different follow up questions to people based on the NPS® score they gave. People who gave a lower score will see a question where they can suggest ways to improve. Let’s set this score value to lower than or equal to 7, and click Save.


Now let’s drag a new path to the follow up question for those who gave a higher score using the + button.

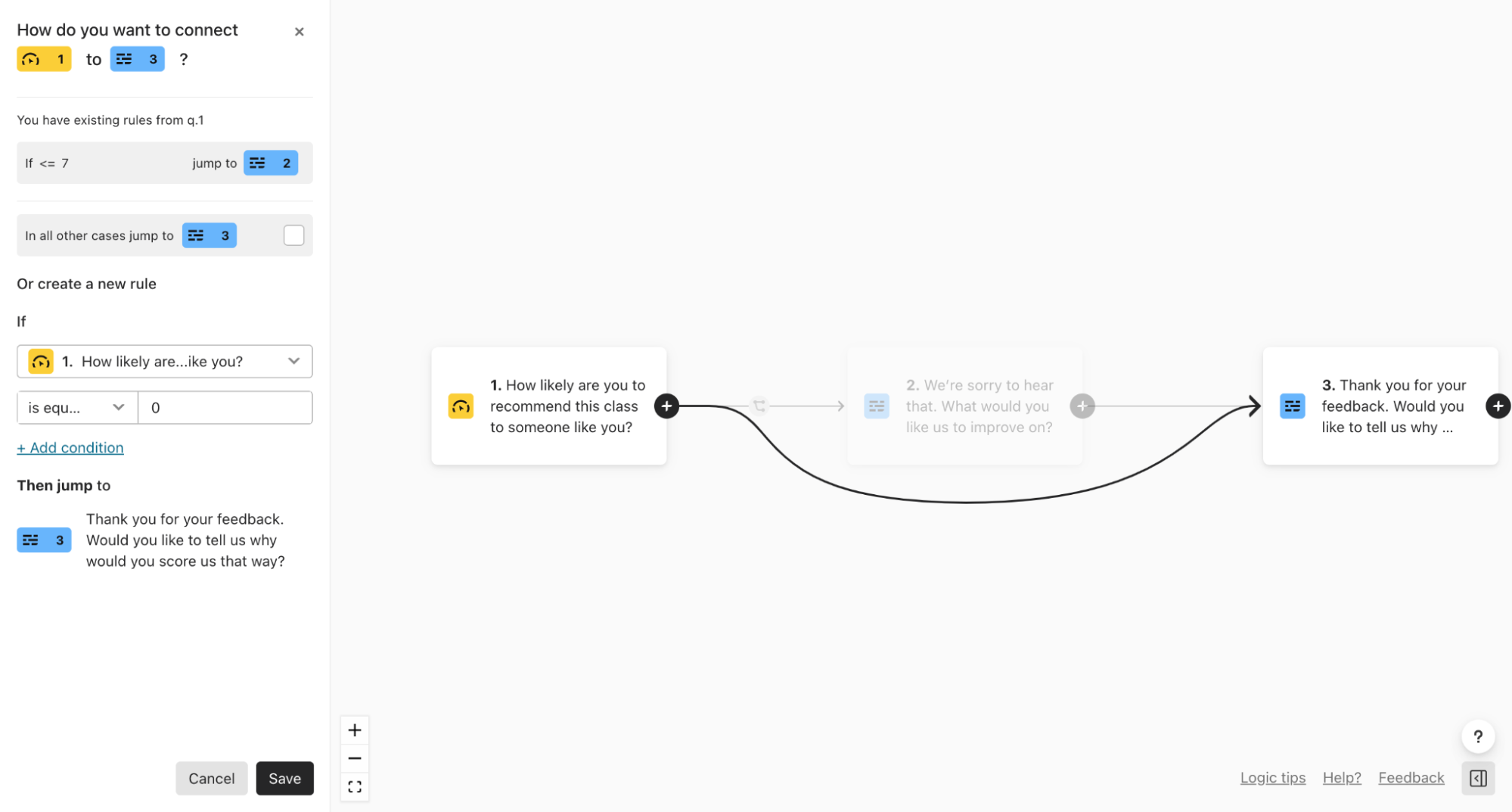

You can set up logic to this follow up question in two different ways. You can either tick the In all other cases jump to checkbox, so people who didn’t give a score of lower than or equal to 7 will always jump to question 3…


…or you can leave the checkbox unticked and create a new If rule, so that people who gave a score of greater than or equal to 8 will jump to question 3.


The logic flow will be the same in both cases here, but simply ticking a checkbox might be a more convenient option than setting a specific value for some use cases.

Now that your logic is set up, you can click the branching icon to view existing logic on that path. Click Edit to update it, or the trash can icon to delete it.


Clicking Edit will once again open up the toolbar on the left hand side with a list of existing logic added to that question.


You can also click any question in the Logic Map to open up this toolbar.

Select a gray row to expand the logic...

2023-12-20_14-26-09 (1).gif

…then click Done to minimize it.


You can also use the + Add rule, the Delete this rule, or the Remove all buttons to change your logic flow. Just make sure to click Save when you're done.

Current limitations

There are some logic types that you can’t modify directly from the Logic Map just yet. These limitations are the following:

- You can't add Logic to assign answers to different Endings directly from the Logic Map. To link answers to Endings, go to the Logic tab, and select Quiz and scoring and then click Outcome quiz. You can find out more about assigning Endings to different responses here.

- You can add scores using variables directly from the Logic Map, but you can’t access the Score quiz feature from there. To create a simple score quiz by assigning points to answers, select Quiz and scoring under the Logic tab then click Score quiz. You can find out more about this feature here.
